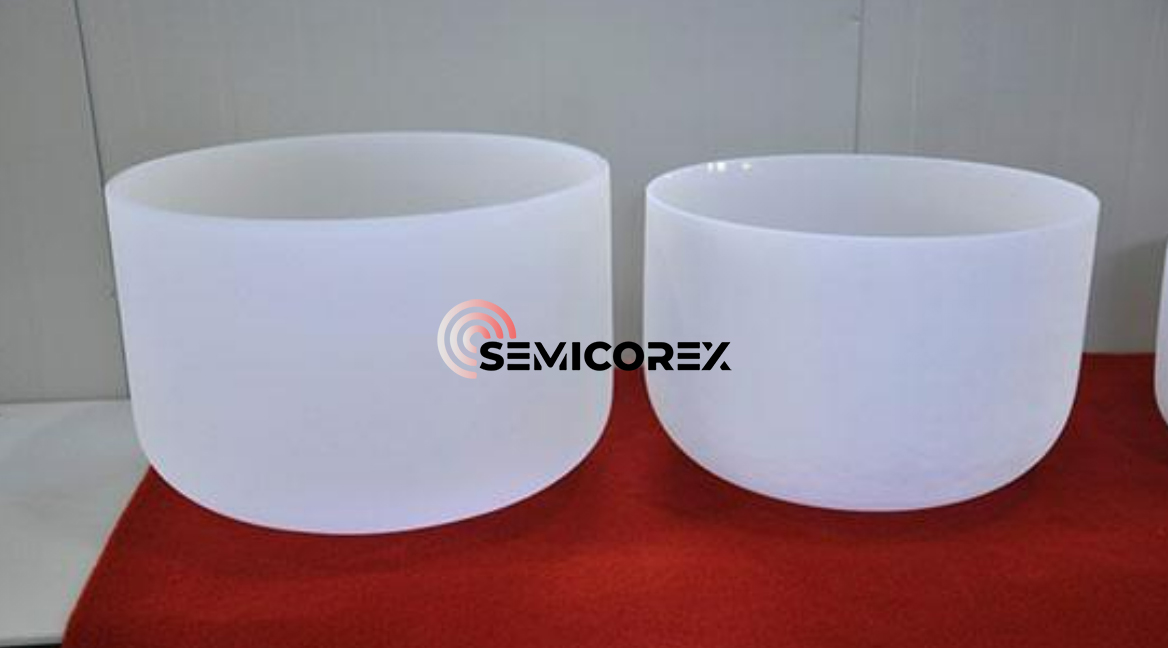

Quartz Crucible Supplier Selection Guide for High-Purity Applications

Selecting the right quartz crucible supplier for high-purity applications is not just a procurement task—it’s a decision that directly impacts yield, contamination control, and long-term process stability. While standard data sheets often look identical, subtle differences in raw material sourcing, cleaning protocols, and surface quality can separate a reliable supplier from a costly failure. In this guide, we break down what actually matters when evaluating partners like Semicorex, and the questions you should ask before committing your production line.

What High Purity Actually Means in a Quartz Crucible

In practical terms, high purity in a quartz crucible is less about a single number and more about controlling the elements that actively damage silicon crystal growth. Sodium, potassium, lithium, and iron can leach into the melt during long pulling cycles, and even a few parts per million of these contaminants can create dislocations or reduce carrier lifetime in the final ingot. So manufacturers typically specify purity by measuring total trace metals, with tighter limits placed on the inner layer that contacts molten silicon.

But chemical purity alone doesn't tell the whole story. The inner surface also needs a dense, low-bubble structure. Bubbles that rupture during high-temperature operation release quartz particles and trapped gases into the melt, which can destabilize crystal growth or get embedded in the ingot. An excessive amount of hydroxyl groups can weaken the crucible wall over time, causing early deformation or devitrification. High purity therefore includes both minimal impurities and a controlled microstructure.

Some crucibles use a higher-purity synthetic quartz layer on the inside and a more standard natural quartz outer layer. The inner layer carries the burden of keeping the melt clean, while the outer layer supplies mechanical stability. This layered approach shows that high purity isn't uniform through the entire wall; it's optimized where it matters most.

The Trace Metals That Ruin High-Purity Melts

In silicon and germanium crystal growth, the worst offenders are iron, copper, and nickel. They sit on interstitial sites and diffuse rapidly even at moderate temperatures, forming deep-level recombination centers that slash minority carrier lifetime. A melt that starts at nine nines purity can be functionally degraded by just a few parts per billion of these elements, which is why feedstock is often specified against individual transition metals rather than total metallic impurity.

For high-temperature alloy melts, the trouble shifts to titanium, zirconium, and vanadium. These trace metals readily combine with residual oxygen and nitrogen to form stable carbide, nitride, or oxide inclusions that survive solidification and act as stress risers in turbine blades or medical implants. Unlike iron or copper, they do not need to be present in large amounts; nanometer-scale clusters are enough to initiate fatigue cracks under cyclic loading.

Then there is aluminum, which creeps into quartz and alumina crucibles and slowly dissolves into the melt over long holding times. In optical glasses and laser crystals, parts-per-million aluminum can pair with alkali impurities to create color centers and scattering defects, while trace chromium or manganese will tint the material even when other contaminants are below detection. Keeping these metals out requires not only purer raw materials but also careful control of refractory linings, heating elements, and the atmosphere above the melt.

Why a Supplier's Cleanroom Protocol Should Be Non-Negotiable

When a component arrives with invisible particulate contamination, the failure often traces back to a supplier that treated cleanroom discipline as a suggestion rather than a rule. Every unmonitored glove change, every gap in gowning procedure, every skipped surface wipe-down introduces variables that no amount of incoming inspection can fully reverse. For implantable or optics-grade parts, that variance doesn't just risk a line stoppage; it rewrites the risk profile of the finished device.

A supplier's cleanroom protocol is a direct reflection of how seriously they take accountability. Audit a facility and you'll see it in the small things: whether operators log particle counts before a shift, how tooling is stored between runs, whether maintenance happens on a schedule or only after a problem appears. These habits aren't cosmetic. They determine whether the cleanroom is a controlled environment or merely a room with a fancy door.

Treating this protocol as negotiable sends a dangerous signal down the supply chain. Once exceptions creep in—just this one batch, just for this deadline—the boundary between clean and almost-clean erodes. In regulated industries, that boundary is the difference between a validated process and an expensive recall. A supplier worth keeping will never ask you to lower that line, because they've built their entire operation around holding it themselves.

Getting a Crucible That Fits Your Process, Not Their Catalog

Standard crucible catalogs are built around broad averages, but real furnaces rarely match those assumptions. Thermal gradients, melt chemistry, and dimensional constraints all shift from one process to the next. If you force a catalog item into a setup it wasn't designed for, you often pay for it with shorter life, contamination, or uneven heating. Starting from your actual process parameters—not the supplier's stock list—lets you define wall thickness, base profile, and material grade around what the melt actually needs.

A useful discussion with a crucible maker begins with specifics: the alloy or glass composition, peak temperature, ramp rate, and how the crucible is handled or quenched. These details matter more than a part number. When you describe failure modes you've seen—edge cracking, slag adhesion, thermal shock—the supplier can adjust raw material purity or forming method to address them. That approach yields a crucible shaped by your process constraints rather than a generic compromise.

Non-standard doesn't have to mean expensive or slow. Many foundries and labs find that small adjustments to an existing mold, or using near-net-shape pressing, produce a custom fit at modest cost. The real barrier is often communication: if you only ask for dimensions, you get a dimensional copy. Explain how the current crucible fails or where production slows down, and the conversation shifts from catalog matching to problem solving. That's when the crucible stops being an off-the-shelf part and becomes part of your process.

Batch Records and Traceability as an Unseen Quality Metric

A batch record rarely gets a second look once the lot clears. It sits in a folder or a database, checked off against release specs, then forgotten. But the way a batch behaves between start and finish leaves a trail that no certificate of analysis ever shows. Slight shifts in mixing time, a pump pressure that drifts upward for three consecutive runs, or a cleaning cycle that takes four minutes longer than usual are all quiet signals. They don't fail the product, yet they tell you something is changing.

Traceability is usually framed as a recall tool. The argument goes that if something goes wrong, you can find every affected unit. That is true, but it undersells the data. When batch records are linked across weeks and months, traceability turns into a control chart for the process itself. You start to see patterns: a raw material lot that consistently runs hotter, an operator whose entries are always just within tolerance, a shift that never hits the same yield as the other two. These are not defects; they are early warnings.

What makes this metric unseen is that it is not printed on a specification sheet. Quality departments measure particle size, assay, moisture, and dissolution. They rarely measure the consistency of the record itself. Yet a plant that keeps clean, detailed, and honest batch records is often the same plant that catches drift before it becomes a deviation. The record does not just prove what happened; it reveals how reliably the process repeats itself.

Ongoing Support That Keeps Your Process Running

Real support doesn't stop once your process is live. Our team stays in the loop, watching for small issues before they turn into downtime. You won't need to chase status updates or file tickets into the void. We check in regularly, adjust settings when your workload shifts, and make sure the underlying tools still fit the way you actually work.

When something unexpected happens, you get a direct line to the people who built and maintain your setup. No scripted phone trees or endless email chains. We track down the root cause, fix it, and then explain what changed in plain language. If a better approach emerges, we'll recommend it without pushing unnecessary upgrades.

That continuity matters most during growth or change. Whether you're adding new team members, moving to a different data source, or increasing output, support should adapt alongside you. We handle the behind-the-scenes tuning so your process stays steady without constant manual oversight.

FAQ

Conclusion

High purity in a quartz crucible rarely shows up on a spec sheet alone. It is defined by what leaches into the melt at temperature: sodium, potassium, iron, copper, boron, and aluminum shift resistivity or seed crystal integrity in ways a standard certificate of analysis often misses. Suppliers that run their own contamination studies on real melts—not just raw sand assays—give you the only numbers that matter. Trace metals have different mobilities depending on the crucible's thermal history and surface finish, so a vendor who cannot explain how their process limits each element should be treated with caution. Cleanroom handling is another quiet failure point. A crucible can leave the factory clean and arrive contaminated because packaging, storage, or handling broke the chain. Ask how the supplier verifies cleanliness after final rinse, not just before.

A crucible that fits your process beats a catalog option every time. Furnace hot zones, pull speed, and charge chemistry all change how quartz deforms and devitrifies. The right supplier asks for your thermal profile and past failure modes before recommending a geometry or wall thickness. Batch records and traceability work as an unseen quality metric: if a vendor cannot tie a crucible back to raw material lot, forming conditions, and inspection data, you are gambling on repeatability. Ongoing support matters more than most buyers admit. The best suppliers track how their crucibles perform across multiple runs and adjust specifications quietly instead of waiting for your complaint. That kind of feedback loop turns a material purchase into process stability.
